MMS Scouting Hunting Camera

Payment Terms: T/T,WU;Paypal
Place of Origin: Guangdong, China (Mainland)
inquire skype
Add to My Favorites
HiSupplier Escrow
Share |

Product Detail

Model No.: LTL-5210MM
Production Capacity: 5000 pcs / month
Delivery Date: 3-7 days
IR: 850NM/940NM
Video: 640*480
Night Vision: 65 feet
Trigger Time: 0.8 second
Waterproof: IP54
Means of Transport: Ocean,Land,Air;DHL,UPS,EMS
Packing: carton box
Brand Name: LTL Acorn
Image: 4000*3000(12MP)
MMS: Yes
SD Card: Max 32GB
Color: Camo / Black
Warranty: 12 months

1).12MP High quality pictures, 640*480 video
2).850NM / 940 NM optional
3).Support max 32GB SD card
4).Waterproof grade IP54

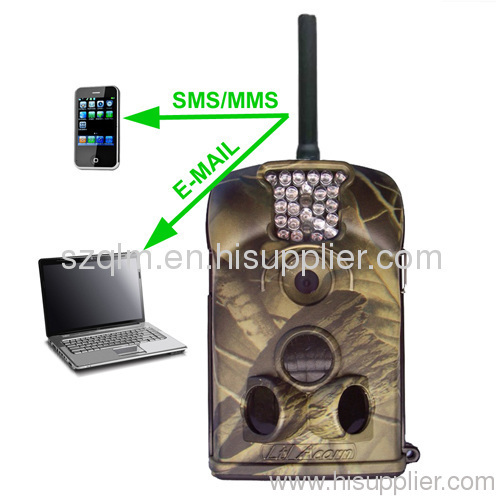

MMS Scouting Hunting Camera

Product Introduction:

The Ltl Acorn M Series (Model Ltl-5210MC andLtl-5210MM) is the second generation of our Ltl-5210 MMS Scouting Hunting Camera. Bundledwith the MMS-module (Multimedia Messaging Service) battery box (Part # LTL-MM)INCLUDED, With its highly sensitive Passive Infra-Red (PIR) sensor, the cameradetects the sudden change of ambient temperature caused by moving game in aregion of interest (ROI), triggers to take pictures/videos, and sends the imagesvia GSM network to the user's cell phone or email account

Features:


1: Programmable 5 or 12-Megapixel high-qualityresolution.
2: Infrared night vision LEDs for flash range as far as 65 feet
3: In "Cam + Video" mode, camera takes both pictures and video at everytrigger event
4: Ultra low standby power consumption. Extremely longin-field life (in standby mode, up to 3 months with 4 x AA batteries and 6months with 8 x AA batteries)
5: Unique side Prep Sensor design provideswider sensing angle and enhances camera's response speed
6: Perform in themost extreme temperatures from -22° F to 158° F
7: Compact size (5 1/2 x 31/2 x 2 1/2 inches). Well designed to deploy covertly
8: Impressively quicktrigger time (1 second)
9: In Time Lapse setting, the camera automaticallyand constantly takes pictures/videos at specified interval. This is very usefulwhen observing plants flowering, birds building nest, or when monitoringunattended properties such as parking lots
10: With Timer setting on, the MMS Scouting Hunting Camera can be programmed to only work in specified period every day. Thisfeature can work together with Time Lapse feature
11: Backpack-looking treegrabber makes mounting and aiming a snap
12: Serial Number setting enablesyou to code locations in the photos. This helps multi-camera users identify thelocation when reviewing the photos
13: Built-in 2 1/4" TFT color display toreview images and videos
14: Date, time, temperature and moon phase can bestamped in the pictures
15: Lockable and password protected
16: Two MMS image sizes to choose: 640 x 480 or 320 x 240
17: Users can configure theCamera and MMS function either by running the enclosed CD on the computer, ordirectly on the built-in TFT display.
18: Separation of the Camera and theMMS module provides users flexibility: Starting with the value model as aregular scouting camera, and upgrading to the premium model with MMS function.
19: Our Advanced Remote Cellular Technology transmits images to your cellphone and General Information email account constantly at lower batteryconsumption and shorter transmission time, compared to products of its kind onthe market.
20: Automatic text alert when battery power level goes low
21: Check cellular signal information on the built-in TFT display in thefield
22: All MMS pictures saved as well as the original pictures
23:Internal antenna emits strong signal
24: Operates globally via GSM/GPRSnetwork. Supports four bands: 850/900 1800 / 1900MHz.

Parameter:

Item
Parameters
Image Sensor
12 Mega Pixels Color CMOS
Max. Pixel Size
4000*3000
F=3.1; FOV=52° ; Auto IR-Cut
IR Flash
65 Feet/20 Meters
LCD Screen
48x35.69mm(2.36" ); 480(RGB)*234DOT; 16.7M Color
Operation Keypad
6 Keys
Memory
SD Card (8MB ~16GB)
Picture Size
5MP/12MP/1.3MP=2560X1920/4000X3000/1280X960;
Video Size
640x480: 20fps; 320x240: 20fps
PIR Sensitivity
High/Normal/Low
PIR Sensing Distance
65ft/20m(Below 77° F/25° C at theNormalLevel)
Prep PIR Sensing Angle
Left and right light beams form an angleof 100° ; Eachlens covers 10°
Main PIR Sensing Angle
35°
Operation Mode
Day/Night
Trigger Time
1.1 Second (When using the 2G SDcard)
Trigger Interval
0sec. - 60min; Programmable
Shooting Numbers
1~3
Video Length
1-60sec.; Programmable
Camera + Video
First take Picture then Video
Playback Zoom In
1~16 Times
Time Stamp
On /Off; Include serial no., temperature and moon phase
Timer
On /Off; Time Lapse Programmable
Password
4-Digit Numbers
Device Serial No.
4 digits and 26 alphabets set by yourself
Periodic Shot
1 Second ~ 24 Hours
MMS Picture Size
VGA: QVGA: OFF: Programmable
MMS Numbers
1~99/Day: Not limit: Programmable
Mobile number
1~3
E-mail
0~1 Programmable
Low Battery SMS Alert
Send" Battery Low"
Power Supply
4xAA; Expandable to 8xAA
External DC Power Supply
Plug Size: 4.0X1.76~12V(2~1A)
Stand-by Current
0.4mA
Stand-by Time
3~6 Months(4xAA~8xAA)
Auto Power Off
Auto power off in 2 minutes while no keypad controlling
Power Consumption
150mA (+350mA when IR LED lightsup)
Low Battery Alarm
4.2~4.3V
Interface
TV out (NTSC); USB; SD Card Slot; 6V DC External
Mounting
Strap; Tripod Nail
Waterproof
IP54
Operation Temperature
-22~+158° F/-30 ~+70° C
OperationHumidity
5% ~ 95%
Accessories
Additional battery box, USB cable, Strap, External DCcable, CD

Pictures:

LTL 5210mm Mobile MMS EMAIL Scouting Hunting Game Camera
LTL 5210mm Mobile MMS EMAIL Scouting Hunting Game Camera

LTL 5210mm Mobile MMS EMAIL Scouting Hunting Game Camera
LTL 5210mm Mobile MMS EMAIL Scouting Hunting Game Camera
