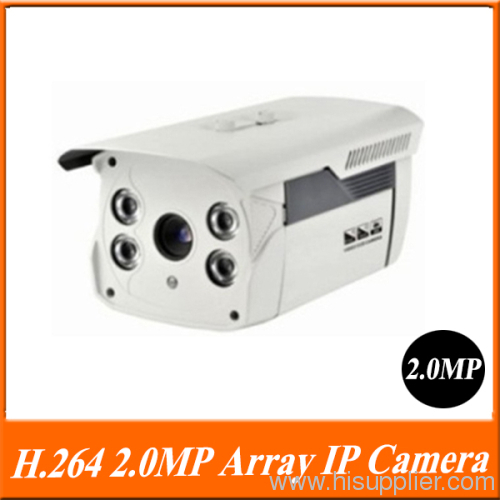

Array POE IP Cameras from China manufacturer - Shenzhen Clairvoyance Intellect Electronic Co.,Ltd

Payment Terms:	T/T,WU;Pay Pal
Place of Origin:	Guangdong, China (Mainland)

Product Detail

Model No.: QLM-FIPR201

Production Capacity: 6000pcs/month

Delivery Date: samples 3-5days Quantity...

Customerized: Yes

Sensor: 1/2.5'' Progressive Scan CM...

LEDS: 4* High Power Array LEDS

Onvif: Onvif 2.0

software: IVS phone view. Symbian, An...

Means of Transport: Air

Packing: Cartons

Brand Name: QLM

Compression: H.264

Max. Pixel: 5.0MP

IR View: 80-100m

Frame Rate: 5.0MP@10fps, 3.0MP@17fps,10...

Protocol: TCP/IP/HTTP/RTSP/FTP/PPPOE/...

Four High Power Array LEDS, Long Range IR View 80-100m.

Feature:

1.Standard H.264 compression Array POE IP Cameras

2.1/2.5'' 5.0 Megapixel CMOS sensor

3.5.0MP@10fps, 3.0MP@17fps,1080P@25fps video frame rate.

4.Multiple adjustable resolution with self-adapting technology

5.Supporting dual streaming level

6.Protocol- TCP/IP/HTTP/RTSP/FTP/PPPOE/DDNS/NTP/UPnP etc.

7.Remote view and management by IE and client software (CMS with 64CH).

8. USBmemory optional (Only for original Kingston)

9.Support ONVIF 2.0

Specification:

Item no.	QLM-FIPR201 Array POE IP Cameras
Image Sensor	1/2.5'' Progressive Scan CMOS sensor
Lens	12mm3.0MP Fixed lens
LEDs& IR distance	4*Array LED, 80-100m IR view
Min.Illumination	1.76V/Lux-sec;0Lux@IR on
CPU	TITMS320DM368
OS	EmbeddedRTOS design, dual core DSP 32bit.
Video Codec	H.264
Analog Video Output	1CHBNC output, support CVBS standard
Video Resolution	Mainstream: 5MP@10FPS; 3MP@17FPS; 1080P, 1200P, 1024P, 960P,720P@25FPS
Video Resolution	Substream: 640360, 480270, 352*192@25FPS
Video Frame Rate	25FPS,support adjustable 1-25fps
Streaming Level	2adjustable
Bit Rate	50k-8Mbps
Audio compression	AAC standard, Support 2-way audio and Synchronous AV
Audio input	2Vp-p,1Vms, support pickups input (only for active audio)
Audio output	16Vms,30mw, support earphone or power amplifier
Network Port	10-100MEthernet RJ45 port
USB Port	1 USB port, support max.64G U disk recording , SD card
Network Protocol	TCP/IP/HTTP/RTSP/FTP/PPPOE/DDNS/NTP/UPnP
PTZ Control	RS422/RS485Serial Port. , support multiple PTZ control protocol, such as PELCO (P) / PELCO(D) / MOLYN (P) / SANTA (P)
PoE	Support built-in 802.3af Compliant POE
SD card	Optional
Software	Free Client software and charged Intelligent Video CMS software
Software	IVS software support mobile phone view. Symbian, Android and IPhone mobile.
ONVIF	ONVIF2.0 compliant
Working Temperature	temperature-10 ~ +50 C
Power input	DC12V +5%
