Product Detail

Model No.: QLM-IPPTZ063-1.3MP

Packing: Cartons

Brand Name: QLM

Pixel: 1.3MP

Led: 1* Laser LED Array

Onvif: Onvif 2.0

Zoom: 16X optical

Min.Illumination: 0lux IR on

Production Capacity: 6000pcs/month

Delivery Date: samples 3-5days Quantity...

Compression: H.264

Sensor: 1/3''SONY IMX036

IR View: 300m

Protocol: TCP/IP,HTTP, RTSP/FTP/PPPOE...

Preset: 256 Preset(Camera Image Set...

Day/night surveillance,1* laser LED Array max makes 300m IR view distance.

Features:

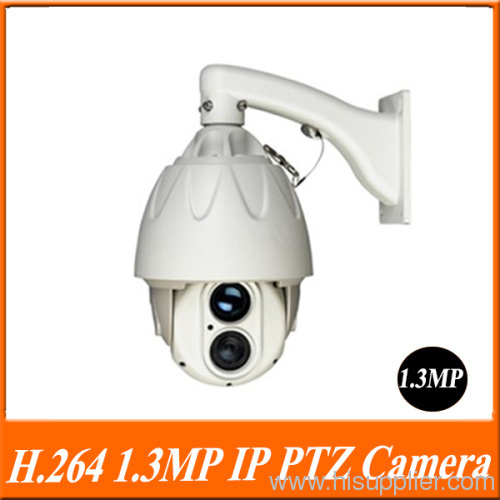

1. 1/3''Sony IMX036 16x Zoom Module High Speed Dome Camera.

2. 256 presets,4 Tours, 4 Patterns, 4 Cruises, RS485, Self-testing after power on Multipleprotocol and baud rate, Anti-lightning -built-in lightning protection.

3. Video resolution 1280*720P, D1 640*480 and CIF 320*240.

4. Day and night surveillance. 1* laser LED Array max makes 300m IR view distance.

5. H.264 baseline profile at Level 3.0 realizes transmission of high definition videoover low network bandwidth easily.

6. Real time ransmission up to 30fps at 720P

7. Multiple network protocol -TCP/IP,HTTP,FTP,NTP,RTP,ARP,ICMP,SMTP,POP3,DNS andRTCP.

8. Remote viewand management by IE and client software (CMS).

9. Various recording modes-motion detection recording, alarm recording, schedule recordingand manual recording.

10. Meet ONVIF2.0 standard to enhance compatibility with various branded IP camera andplatform for easy integration.

Specification:

Model	QLM-IPPTZ063-1.3MP High Speed Dome Camera
Application environment	Indoor/Outdoor
Pick-updevice	1/3''SONY IMX036
Max.Pixels	1280*720P
S/NRatio	50dB(AGCOff)
LEDs	1* laser LED Arraymake max 300m IR distance
Zoom	16Xoptical
Focal Length	f=3.6-57.6mm
Min.Illumination	0lux IR on
Day& Night	Auto/ Color / B/W (ICR)
Focus	Auto/ Manual / Semi-Auto
Iris	Auto/ Manual
Shutter Speed	128X~1/120000sec
AGC	Normal/ High / Off
White Balance	Auto/ Manual / (Red, Blue Gain Adjustable)
BLC	Low/ Middle / High / Off
Flickerless	Selectable
Digital slow shutter	Low/ Middle / High / Off
Pan/ Tilt Range	Pan:360°(Endless), Tilt: 180°(Auto Electronics Flip)
Pan/ Tilt Speed	Preset:360°/sec, Pan: 0.08~300°/sec(Proportional to zoom) Tilt:0.08~300°/sec
Preset	256Preset (Camera Image Setting )
Pattern scan	4Patterns, 1200 commands ( About 5minutes)/Pattern

Swing	4Swing
Group	4Groups ( 27 actions/group )
Communication	RS-485(Pelco-D/Pelco-Pselectable)
Privacy Zone	8zones
OSD	Menu/ PTZ information etc
Other function	Autoflip, Auto parking, Power up action etc
Bracket	ceiling/wallmounting
Power supply	DC12-15V4A
