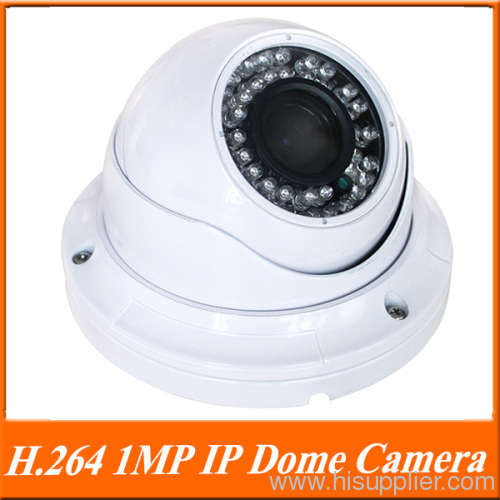

Surveillance Security IP Network Camera from China manufacturer - Shenzhen Clairvoyance Intellect Electronic Co.,Ltd

Payment Terms:	T/T,WU;Pay Pal
Place of Origin:	Guangdong, China (Mainland)

Product Detail

Model No.: QLM-RIPD127

Packing: Cartons

Brand Name: QLM

Compression Mode: H.264

Pixel: 1.0MP

Leds: 42*F5 LEDs

Frame Rate: 720P@25FPS

OS: Embedded RTOS design, dual ...

Production Capacity: 6000pcs/month

Delivery Date: samples 3-5days Quantity...

Customerized: Yes

Sensor: 1/4'' 1.0 Progressive Scan ...

Onvif: Onvif 2.0

IR View: 20-25m

Network Protocol: TCP/IP/HTTP/RTSP/FTP/PPPOE/...

H.264 1/4'' 1.0 Megapixel Progressive Scan CMOS sensor 42F5 Leds IR Vision 20-25m,720P@25FPS video frame rate

Features:

1.Standard H.264 compression

2.1/4'' 1.0 Megapixel CMOS sensor Surveillance Security IP Network Camera

3.720P@25FPS video frame rate.

4.Multiple adjustable resolution with self-adapting technology

5.Supporting dual streaming level

6.Protocol -TCP/IP,HTTP, RTSP/FTP/PPPOE/DDNS/NTP/UPnP etc.

7.Remote view and management by IE and client software (CMS with 64CH).

8.Various recording modes-motion detection recording, schedule recording andmanual recording.

9.Support ONVIF 2.0

Specification:

Item No.	QLM-RIPD127 Surveillance Security IP Network Camera
Image Sensor	1/4''1.0 Megapixel Progressive Scan CMOS sensor
LEDs& IR distance	42*F5 LEDs, 20-25m IR view
Min.Illumination	3300mV/Lux-sec;0Lux@ IR on
CPU	TI TMS320DM365
OS	Embedded RTOS design, dual core DSP 32bit.
Video Codec	H.264
Analog Video Output	1 CH BNC output, support CVBS standard
Video Resolution	Mainstream: 720P@25FPS
Video Resolution	Substream: 640360, 480270, 352*192@25FPS
Video Frame Rate	25FPS,support adjustable 1-25fps
Streaming Level	2adjustable
Bit Rate	50k-8Mbps
Network Port	10-100MEthernet RJ45 port
USBPort	1USB port, support max.64G U disk recording , SD card
NetworkProtocol	TCP/IP/HTTP/RTSP/FTP/PPPOE/DDNS/NTP/UPnP
POE	Optional,Support built-in 802.3af Compliant POE
Software	FreeClient software and charged Intelligent Video CMS software
Software	IVSsoftware support mobile phone view. Symbian, Android and iPhone mobile.
ONVIF	ONVIF2.0 compliant
Working Temperature	temperature-10 ~ +50 C
Power input	DC12V +5%
