wireless camera video transmitter and receiver from China manufacturer - Shenzhen Clairvoyance Intellect Electronic Co.,Ltd

wireless camera video transmitter and receiver

Price:	100.0~110.0 USD
Payment Terms:	T/T,WU;Paypal
Place of Origin:	Guangdong, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: QLM-2408-2000A

Packing: Carton

Brand Name: QLM

Production Capacity: 5000

Delivery Date: 2-5days

Volume 80*60*35mm
Channel 4/8 adjustable
Voltage/Current 12V/750mA
Operation Temperature -20 to +60 centigrade

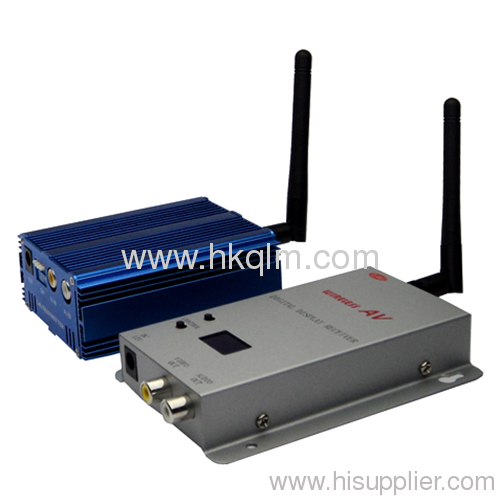

2.4 GHz 8 Channels 2000mW wireless AV transmitter and receiver

Specifications:

Transmitter	Volume	806035mm
	Channel	4/8 adjustable
	Voltage/Current	12V/750mA
	Operation Temperature	-20 to +60 centigrade
	Frequency	2.3-2.5GHz
	Power	2000 mW 33dBm
	Transmission distance	300M-1000M(in eye sight)
	Video output	1Np-p
	Audio/Video input port	AV(RCA)
Receiver	Volume	1358021mm
	Operation Temperature	-20 to +60 centigrade
	Voltage/Current	9-12V/250mA
	Frequency	2.3-2.5GHz
	Sensitivity	-85dBM
	Audio/Video output port	AV(RCA)
Accessories	Power adapter	2 pcs
	3dBantenna	2 pcs
	AV cable	2 pcs
	User manual	English manual 1 pcs

Channel and Frequency:

TX CH	CH1	CH2	CH3	CH4	CH5	CH6	CH7	CH8
RX CH	01	02	03	04	05	06	07	08
MHz	2414	2432	2450	2468	2370	2390	2490	2510

Notice:

For better reception, please make sure that the transmitter and the receiver are placing at least 5 feet above ground. Distance affected by the nature of environment such as noise, weather, traffic, building, trees ... etc.
Antenna must be attached on the transmitter before power up. Otherwise, the transmitter will be burned out because the excess power cannot be released by the antenna. If you need longer range,you need to install high gain antenna such as 13DB yagi antenna.
