av wireless transmitter system from China manufacturer - Shenzhen Clairvoyance Intellect Electronic Co.,Ltd

Price:	35.0~40.0 USD
Payment Terms:	T/T,WU;P
Place of Origin:	Guangdong, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: QLM-1215-500A

Production Capacity: 5000

Delivery Date: 2-5days

Means of Transport: Air,

Packing: Carton

Brand Name: QLM

Volume 64*43*17mm
Channel 15 adjustable
Voltage/Current 12V 230mA
Operation Temperature -20 to +60 centigrade

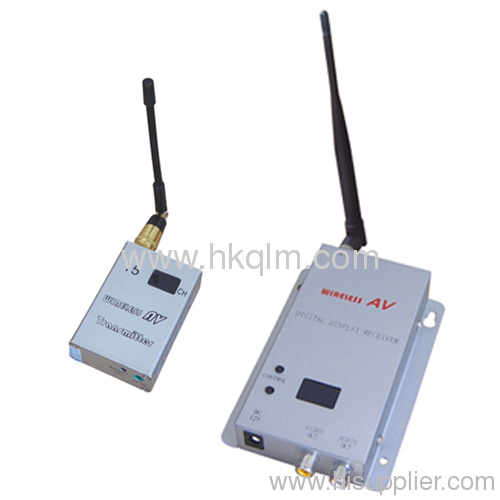

1.2 GHz 15 Channels 500mW wireless AV transmitter and receiver

Specifications:

Transmitter	Volume	644317mm
	Channel	15 adjustable
	Voltage/Current	12V 230mA
	Operation Temperature	-20 to +60 centigrade
	Frequency	0.9 -1.2GHz
	Power	500mW 27dBm
	Wireless range	100-900M(in eye sight)
	Video output	1Np—p
	Audio/Video input port	AV(RCA)
Receiver	Volume	1135819mm
	Operation Temperature	-20 to +60 centigrade
	Voltage/Current	9-12V/250mA
	Frequency	0.9-1.2GHz
	Sensitivity	-85dBM
	Audio/Video input port	AV(RCA)
Accessories	Power adapter	2 pcs
	1dBantenna	2 pcs
	AV cable	2 pcs
	User manual	English manual 1 pcs

Channel and Frequency:

TX	1	2	3	4	5	6	7	8	9	A	b	c	d	E	F
RX	01	02	03	04	05	06	07	08	09	10	11	12	13	14	15
MHz	993	1021	1051	1060	1080	1100	1120	1140	1160	1180	1200	1220	1240	1260	1280

Notice:

For better reception, please make sure that the transmitter and the receiver are placing at least 5 feet above ground. Distance affected by the nature of environment such as noise, weather, traffic, building, trees ... etc.
Antenna must be attached on the transmitter before power up. Otherwise, the transmitter will be burned out because the excess power cannot be released by the antenna.
1.2 GHz 15 Channels 500mW wireless video transmitter receiver
