IR PT IP Camera

Payment Terms: T/T,WU;Paypal
Place of Origin: Guangdong, China (Mainland)
inquire skype
Add to My Favorites
HiSupplier Escrow
Share |

Product Detail

Model No.: 530W
Production Capacity: 3000 pcs / month
Delivery Date: 3-7 days
Means of Transport: Air;DHL,UPS,EMS
Packing: carton box
Brand Name: MCH

1).H.264 video,built-in microphone
2).Built-in Pan/Tilt, horizontally 350°, vertically 100°.
3).Support mobile phone watching

H.264 video audio Wireless IR PT IP Camera

ITEM NO.:

NCH-530W   IR PT IP Camera

Description:
It adopts H.264 Main Profile@ Level 3.0 compression format, support 2 way audio, Wifi, SD Slot (32GB), and mobile phone view, built-in Pan/Tilt and IR, alarm in and out interface, support UPNP, motion detection, email alarm, etc. It is the real all in one ip camera.

Features:
- Support 2 kinds of H.264 video stream and 1 way MJPEG video stream simultaneously, suitable for Local, Internet and Cross-platform view.
- Built-in microphone, and also support to connect external audio capturing device (like MIC phone or sound pick-up) to capture the audio. External speaker can play the voice sent to the live scene, to achieve two-way intercom function. Audio support G.711 and G.726 types. Support echo suppression.
- Built-in Pan/Tilt, horizontally 350°, vertically 100°.
- Infrared LED for night vision covers 5m area, to realize 24 hours monitoring.
- Support IR and color filter change automatically, no any color difference.
- Support maxim 32G SD card for video and picture storage.
- Support 802.11b/g/n protocol, can build up wireless monitoring.
- Motion detection and alarm pin can be connected to external sensors to detect environmental situation.
- Built-in web server, use one port to send all the data, it facilitates network setting.
- Support mobile phone watching.
- Support video view by other browsers like as Firefox, safari etc.
- Manufacture attached a label at the bottom of each IP Camera, it include Device ID, DDNS. When IP Camera is connected to the internet, this URL can be used to visit the device.
- Manufacture provides free software, support Multi-view, Long time recording, video replay etc.

Parameter:
Item
Sub item
Description
Image Capture
Sensor
1/4" CMOS sensor
Total of pixel
300k
Minimum illumination
IR lights on, 0 Lux
Lens
f=4.0mm, Fixed Iris
IR_CUT
Support IR and color filter change automatically
Pan/Tilt
Pan Coverage
350°
Tilt Coverage
100°
Preset Numbers
1
Assistant
Lighting Control
Auto/manual control
Lighting
8pcs 850nm Infrared lights, 5m distant
Video and Audio
First Stream Resolution
VGA/QVGA/QQVGA
Second Stream Resolution
QVGA/QQVGA
Compression
H.264/JPEG
Frame rate
30fps
First Stream Bit rate
90kbps ~ 2.048Mbps
Second Stream Bit rate
90kbps ~ 512kbps
Image Rotation
Flip / Mirror
OSD
support
Audio Compression
G.711/G.726
Network
Basic Protocol
TCP/IP\HTTP\SMTP\RTSP\FTP\DHCP\DDNS\UPNP\NTP
Other Protocol
802.11b/g/n
Other Features
Mobile Phone View
support
Video control
support
Dual way audio
support
Memory
Snap or video into SD card
Browser SD card
View or download from network
Motion Detection
yes( 4 zone detection )
Triggered Actions
Email/FTP/SD storage/external alarm/send message to alarm server
User Setting
Three levels
Date/ Time Setting
support
Upgrade
Upgrade from network
DDNS
A free DDNS provided by manufacturer
Hardware Interface
Ethernet
10Base-T/100base-TX
Memory
SD Slot
Alarm In
1 way
Alarm Out
1 way
Audio In
Internal mic x 1, audio input interface x 1
Audio Out
audio output interface x 1
Physical Index
Weight
358g
Main body
111mm(L)*107mm(W)*121mm(H)
Power
DC 5V
Power consumption
<6W
Operating temperature
-20℃~ 50℃
Humidity
10% ~ 80% non-condensing
Software(PC Side)
OS Supported
Microsoft Windows 98/2000/XP/Vista etc.
Browser
Internet Explorer6.0 and Above or Compatible Browser, Safari/Firefox etc.
Application Software
IPCMonitor.exe

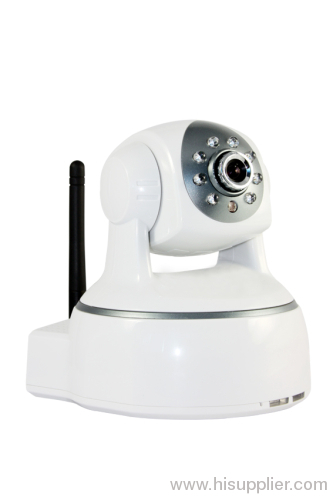

IR PT IP Camera Pictures:
