dvr cctv recorder from China manufacturer - Shenzhen Clairvoyance Intellect Electronic Co.,Ltd

Payment Terms:	T/T,WU;paypal
Place of Origin:	Guangdong, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: QLM-DVR7600

Production Capacity: 3000 pcs / month

Delivery Date: 2-10 days

Channel: 4/8/16

Means of Transport: Air;DHL,UPS,EMS

Packing: carton box

Brand Name: QLM

Compression Standard: H.264

1).Compression Standard H.264
2).Channel:4/8/16CH
3).Power supply:12V 5A-3A
4).Mobile monitoring (3G), Iphone
5).Warranty:1 year

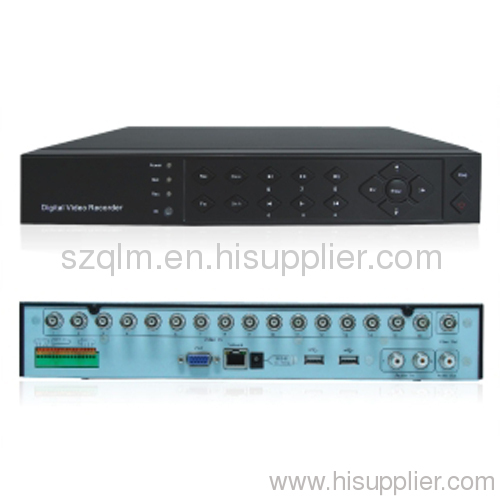

H.264 standalone dvr cctv recorder

Product Name:dvr cctv recorder
Model:QLM-DVR7600

FEATURES:

• Stand-Alone DVR, H.264 Compression

• High quality video Display : NTSC (720x480),

PAL (704x576) real time display

• Multiple Recording/ Search Categories:

Date/Time, Event, Manual, Schedule,alarm, motion detection

• Real time recording support:

120/240/480Fps for NTSC at CIF image (100/200/400 Fps for PAL)

• 4ch Video recording at the same time

• Pentaplex: Live, Record, Playback, Back-up and Network at the same time

• Backup:USB 2.0 and NET backup supported

• PTZ camera control in local and remote area

Network Viewer

• Static, Dynamic IP and DDNS , Support Internet Explorer and special client software

• Remote Live Monitoring, file searching, Backup, Playback and PTZ camera control

• Remote Configuration, Firmware Upgrade and Event (Alarm, Motion, Email) Notification

• Mobile monitoring (3G), Iphone

Specification:

Project:	Specification and parameters
Channel:	7616C	7608C	7604C
Video signal:	PAL system (25 frames / sec) NTSC system (30 frames / sec)
Video input:	BNC(1.0Vp-p/75Ω)×16	BNC(1.0Vp-p/75Ω)×8	BNC(1.0Vp-p/75Ω)×4
Video output:	BNC connector × 1, VGA × 1
Audio input:	2 ch	2 ch	2 ch
Audio output:	1 ch	1 ch	1 ch
Alarm Input:	2ch (switching capacity)	2 ch (switching capacity)	2 ch (switching capacity)
Alarm output:	1ch (switching capacity)	1 ch (switching capacity)	1 ch (switching capacity))
Playback resolution:	4CH D1+ 12CH CIF	4CH D1+ 4CH CIF	FULL D1
Alarm:	Alarm sensor input; video dynamic detecting alarm; video loss alarm; disk full alarm
Network mode:	10/100M adaptive, support LAN, WAN and ADSL dynamic IP networking
Monitoring methods:	IE monitoring, phone monitoring, E-mail function
Control:	support for the mouse, remote control, PTZ, camera control
Backup mode:	support USB and Network Backup
Resolution:	PLA system: Display Resolution: 720 × 576 compressed resolution: 352 × 288 NTSC system: Display Resolution: 720 × 480 compressed resolution: 352 × 240
Compression Standard:	H.264
Hard disk:	One large hard drives 2000G
Security features:	two password management
Power supply	DC 12V/5A-3A
Power:	12W (without hard drive)	8W(without hard drive)	8W (without hard drive)
Temperature:	Operating temperature: +5 ℃ ~ +50 ℃; humidity: <90% Storage temperature: -20 ℃ ~ +70 ℃; humidity: <95%
Dimensions:	320×55×255mm(W × H × D)
Weight:	Net weight:1.5Kg Gross weight:2.5kg
