digital wireless baby monitor from China manufacturer - Shenzhen Clairvoyance Intellect Electronic Co.,Ltd

Payment Terms:	T/T,WU;Paypal
Place of Origin:	Guangdong, China (Mainland)

Product Detail

Model No.: QLM-70E

Production Capacity: 5000 pcs / month

Delivery Date: 2-10 days

Screen: 7 inch TFT

Signal: Digital

Wireless Range: LOS 100M

Warranty: 12 months

Means of Transport: Ocean,Land,Air;DHL,UPS,EMS

Packing: carton box

Brand Name: QLM

Frequency: 2.4GHz

Audio & Video: Support

Night Vision: 15 M

1).380 TV lines clear picture display.
2).Wireless Range up to 100M
3).7.0 inch wide TFT screen
4).15M night vision range

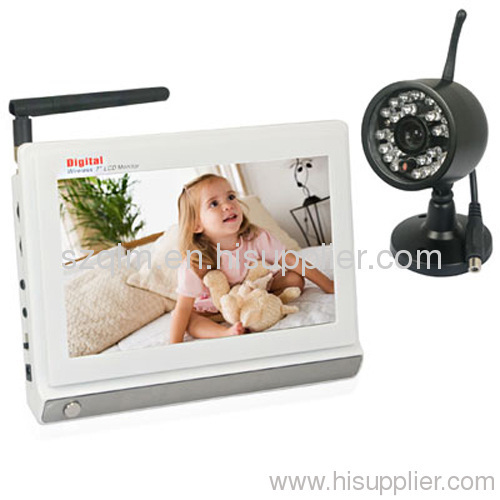

2.4 ghz 7 inch screen digital wireless baby monitor

Product Name:digital wireless baby monitor
Model:QLM-70E

Product Features:

1).High definition and high frame rate (25fps).

2).100% secure, privacy and without interference.

3).Built-in 24 IR lights for 15m night vision range.

4).380 TV lines clear picture display,Weather-proof design for outdoor use.

5). Built-in microphone for audio monitoring

6).7 inch TFT LCD 2.4GHz 4-Channels Wireless AV Color Monitor.

7).PAL/NTSC System.

Technical parameters:

Specifications
QLM-70E	Transmission frequency	ISM 2,400-2,483 MHz 4 Frequency
	Modulation	FM
	Antenna	Camera: omni-directional antenna Receiver: Built-in hidden
	Distance	200M
	Temperature	-10~+50℃/ +14 ~ +℉
	Storage temperature	-20~ +60℃/ -4 ~ +140℉
	Humidity	85%RH
Camera	Light-sensitive chip	1/3" OmnVision CMOS
	Image pixel	628582PAL;510492NTSC
	Perspective	PAL62°; NTSC46°
	Minimum illumination	1.5Lux/F1.5
	Transmission power	80mW
	Power supply	DC 5V 1A
	Night vision distance	15M
	Size	¢57mm*67mm
	Weight	210g
Receiver	Sensitivity	≤-85dBm
	LCD materials	TFT
	LCD screen size	7"
	Resolution	480*240
	Effective area	49.2mm*38.142mm
	Pitch	0.1025mm*0.163mm
	Viewing angle(U / D / L/ R)	10°/ 30°/ 45°/ 45°(Min.)
	Brightness	250 cd/m³
	Contrast	15:1
	Power supply	DC 12V 1500mA
	Size	190mm140mm20mm
	Weight	425g
